Power Supply

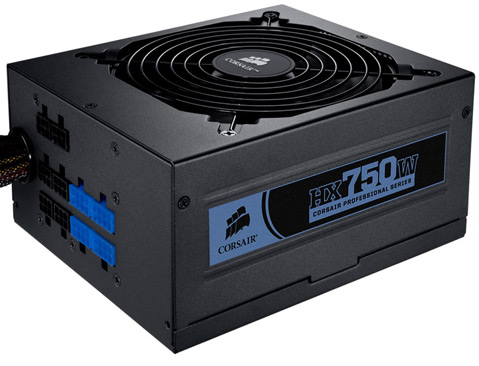

CORSAIR HX Series CMPSU-750HX 750W

The HX750 PSU from Corsair puts out an impressive 750 watts of power and supports the latest ATX12V v2.3 standards as well as EPS12V 2.91 standards. The unit is 80 PLUS SILVER certified and has a 99% Active Power Factor Correction to ensure maximum efficiency.

• Guaranteed to sustain its full rated wattage at an ambient temperature of 50°C
• Up to 90% energy-efficiency under real-world load conditions*
• Single +12V rail design providing up to 62A
• Multi-GPU ready
• 105°C solid-state capacitors
• Active Power Factor Correction (PFC) with PF value of 0.99
• Supports ATX12V 2.3 and EPS12V 2.91 standards. Backwards compatible with ATX12V 2.01
• Auto switching circuitry for universal AC input from 90-264V
• Over Current/Voltage/Power Protection, Under Voltage Protection and Short Circuit Protection provide complete component safety
• Dimensions: 150mm(W) x 86mm(H) x 180mm(L)
• MTBF: 100,000 hours
• Safety Approvals: UL, CUL, CE, CB, FCC Class B, TÃœV, CCC, C-tick

The cables are extra long, to work in the largest tower. They are fully sleeved for easy routing and bundling. There are four 8-pin PCIe power connectors so you can build up a CrossFire or SLI system using today’s high end video cards. There are also 12 SATA and 8 Molex connectors so you can connect multiple drives and peripherals.

Keeping it all cool is a temperature-controlled 140mm fan. Air is vented through the hexagon mesh back panel. The universal input accepts voltages from 90V to 264V so you no longer have to worry if the switch was in the right position.

View product manual (PDF)
