Hard drive (storage 3 x 1TB drives)

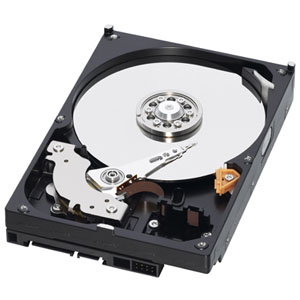

Western Digital Caviar Green WD10EACS

• Brand = Western Digital
• Series = Caviar Green
• Model = WD10EACS
• Interface = SATA 3.0Gb/s
• Capacity = 1TB
• Cache = 16MB
• Average Seek Time = 8.9ms
• Average Latency = 5.6ms

As hard drive capacities increase, the power required to run those drives increases as well. WD Caviar Green drives make it possible for energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.

Reduced power consumption - WD has reduced power consumption by up to 40 percent compared to standard desktop drives with the combination of WD's IntelliSeekâ„¢, IntelliParkâ„¢, and IntelliPowerâ„¢ technologies.

Helps enable eco-friendly PCs - WD Caviar Green drives yield an average drive power savings of 4-5 watts over standard desktop drives making it possible for our energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation. This power savings equates to reducing CO2 emission by up to 13.8 kilograms per drive per year - the equivalent of taking a car off the road for 3 days each year*. By using environmentally-conscious PCs with our WD Caviar Green drives on board, large organizations with many desktop computers can minimize their carbon footprint and save real money on electricity costs.

Cool and Quiet - GreenPowerâ„¢ technology yields lower operating temperatures for increased reliability and low acoustics for ultra-quiet PCs and external drives.

Perfect for external drives - External drive manufacturers can eliminate the need for a fan in a high-capacity product with a WD Caviar Green drive, the coolest and quietest in its class. External drives with WD Caviar Green drives on board can save up to $14.00 per year in electricity costs. See our power savings chart for details.

IntelliPower - A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, WD Caviar Green drives consume less current during startup allowing lower peak loads on systems as they are booted.

IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise and vibration.

IntelliPark - Delivers lower power consumption by automatically unloading the heads during idle to reduce aerodynamic drag.

Perpendicular Magnetic Recording (PMR) - Employs PMR technology to achieve even greater areal density.

StableTracâ„¢ - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking, during read and write operations. (750 GB and 1 TB only)

Performance Specifications

Transfer Rates
	Buffer To Host (Serial ATA)	3 Gb/s (Max)

Physical Specifications
	Formatted Capacity	1,000,204 MB
	Capacity	1 TB
	Interface	SATA 3 Gb/s
	User Sectors Per Drive	1,953,525,168

Physical Dimensions
English
	Height	1.028 Inches (Max)
	Length	5.787 Inches (Max)
	Width	4.00 Inches (+/- 0.010 inch)
	Weight	1.39 Pounds

Metric
	Height	26.1 mm (Max)
	Length	147 mm (Max)
	Width	101.6 mm
	Weight	0.63 kg

Environmental Specifications
Shock
	Operating Shock (Read)	65G, 2 ms
	Non-operating Shock	250G, 2 ms

Acoustics
	Idle Mode	25 dBA (average)
	Seek Mode 0	27 dBA (average)
	Seek Mode 3	25 dBA (average)

Vibration
	Operating
	Linear	20-300 Hz, .75G (0 to peak)
	Random	10-300 Hz, 0.008 g² / Hz

	Non-operating
	Low Frequency	5-20 Hz, 0.195 inches (double amplitude)
	High Frequency	20-500 Hz, 4.0G (0 to peak)

Electrical Specifications
Current Requirements
	Power Dissipation
	Read/Write	5.4 Watts
	Idle	2.8 Watts
	Standby	0.40 Watts
	Sleep	0.40 Watts
